Description for Dell Power Edge R540 2URack (Up to 8x 3.5″ Hot Plug HDDs)
Power your applications with a versatile 2-socket rack server
Satisfy a variety of applications with the flexible PowerEdge R540. Its balanced combination of resources, expandability and affordability adapt to the changing demands of a modern data center. Optimize your application performance with one-button tuning. Scale for future requirements with up to 14 x 3.5″ drives. Embedded diagnostics and SupportAssist help to maximize uptime without added effort, in a worry-free environment.
- Video streaming
Achieve performance at scale with the PowerEdge portfolio
Our modern compute platforms are built to scale easily and take advantage of technologies that lift application performance. The PowerEdge R540 rack server combines affordably and versatility, so you can adapt to a variety of applications and meet future demands.
Gain productivity with intelligent, embedded management
Dell EMC OpenManage intelligent automation enables you to spend less time on routine maintenance so you can focus on business-critical priorities.
- Help maximize uptime and reduce the IT effort to resolve issues by up to 72%1 with ProSupport Plus and SupportAssist.
- Leverage existing management consoles with easy integrations for VMware® vSphere®, Microsoft® System Center and Nagios®.
- Improve productivity with agent-free Dell EMC iDRAC9 for automated management.
- Simplify deployment with OpenManage next-generation console and server profiles to configure and prep servers rapidly and scalably.

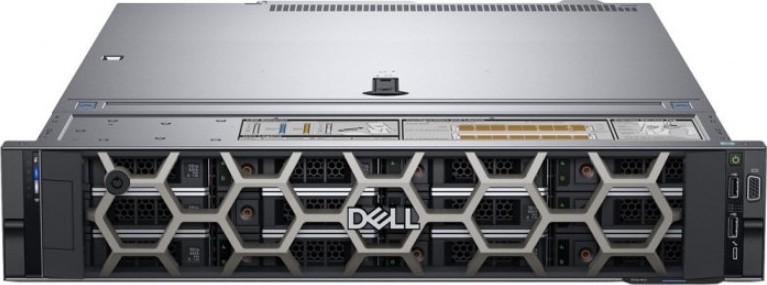

Dell Power Edge R540 2URack (Up to 8x 3.5″ Hot Plug HDDs)
Processor: Intel Xeon Silver 4110 (2.1GHz/3.0GHz, 11 MB L3 Cache, 8Core/16 Threads) 85W
Memory: 16GB (2*8GB) RDIMM, 2666MT/s, Dual Rank, x8z
2 x Dell 300GB 10K RPM SAS 12Gbps 512n 2.5in 3.5In HYB Hot-plug Hard Drive, CK
Storage controller: PERC H730P RAID Controller, 2GB NV Cache, Adapter, Low Profile
Optical Drive: DVD+/-RW, SATA Internal
Network interfaces: Broadcom 5720 Dual Port 1 GbE Network LOM Mezz Card + Dual-Port 1GbE On-Board LOM
Systems Management: iDRAC9, Express
Power supply: Dual, Hot-plug, Redundant Power Supply (1+0), 750W
Form Factor: 2U Rack (Ready Rails Sliding Rails with Cable Management Arm)
Warranty: 3 Year ProSupport and Next Business Day Onsite Service
Specifications for Dell Power Edge R540 2URack (Up to 8x 3.5″ Hot Plug HDDs)
- 12 February, 2020
- 30.00 Kg
- 73.20 cm x 43.20 cm x 10.02 cm
